Center, Side, Three & Quad seal pouch making machine
The machines listed below are the high selling machines of MPM, these machines can reach speed up to 200pouches/min with mark & plain with high accuracy. A Center Seal Pouch Making Machine is a specialized industrial device designed to produce center-sealed pouches commonly used for packaging food items, pharmaceuticals, cosmetics, and other consumer goods. These pouches are characterized by a longitudinal seal at the back, providing excellent durability and barrier properties. This machine has independent servo for cross sealing and inline sealing, with cooling for the center sealing. This machine can produce the pouches that are mentioned below 1. CENTER SEAL POUCH 2. CENTER WITH GUSSET POUCH 3. SIDE SEAL POUCH 4. THREE SIDE SEAL POUCH 5. QUAD SEAL / FIVE SIDE SEAL POUCH
Specifications
| DESCRIPTION | SPECIFICATION |
|---|---|
| Minimum Width | 130mm |
| Maximum Width | 450mm |
| Minimum Length | 80mm |
| Maximum Length | 400mm, With skipping 1200mm |
| Maximum Web width | 920mm / For quad seal 500mm |
| Film Thickness | 50mic to 150mic |
| Maximum Speed | 200 pouches/min * |
| Total Power | 21kW |
| Machine Dimensions | 7800mm(L) x 1500mm(W) x 1650mm(H) |
* DEPENDING ON THE SIZE & FILM THICKNESS.

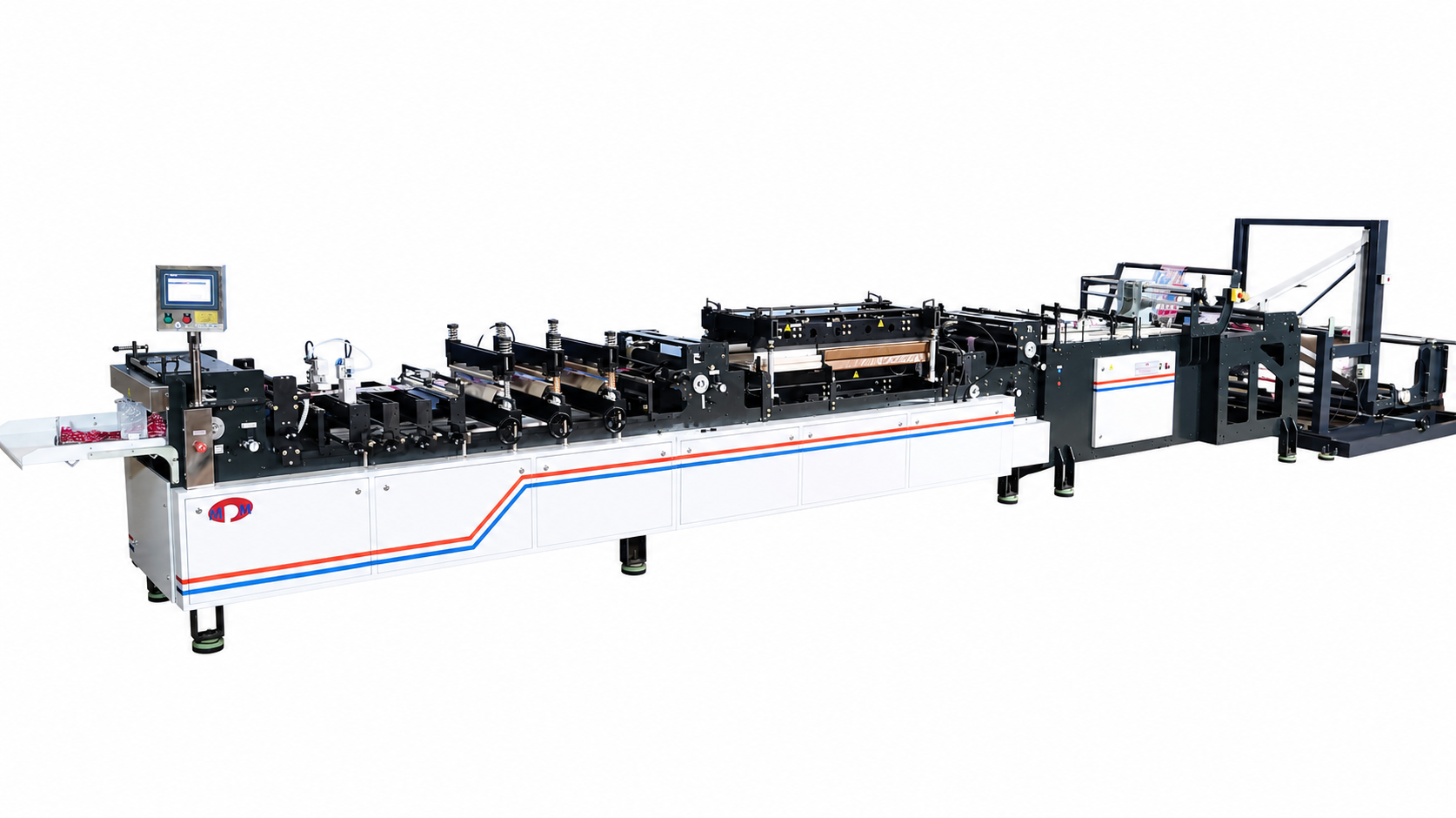

** ACCESSORIES SHOWN IN THE IMAGE IS NOT STANDARD ITEMS.
Compatible Materials
Plan or Printed
- Multi layer laminated film
- BOPP
- Two Station Sealing
- One Station Cooling (Provision for chilled water will be provided)
- Inline sealing LH & RH
- Inline Cooling LH & RH (Provision for chilled water will be provided)
- Main draw rubber roller servo driven, controlled by PLC
- AC drives & Servo drives are SYNCHRONIZED
- Inline sealing, Cross sealing have independent servo
- High Speed Color mark sensor
- Auto ERROR message with machine stop
- Print mark protection
- Online Punches
- Stacker
- Single structure LASER CUT machine.
- Time for installing the machine after unloading is 3 to 4 hrs.
- Wiring type PLUG & PLAY
