MPMCP240S6LM

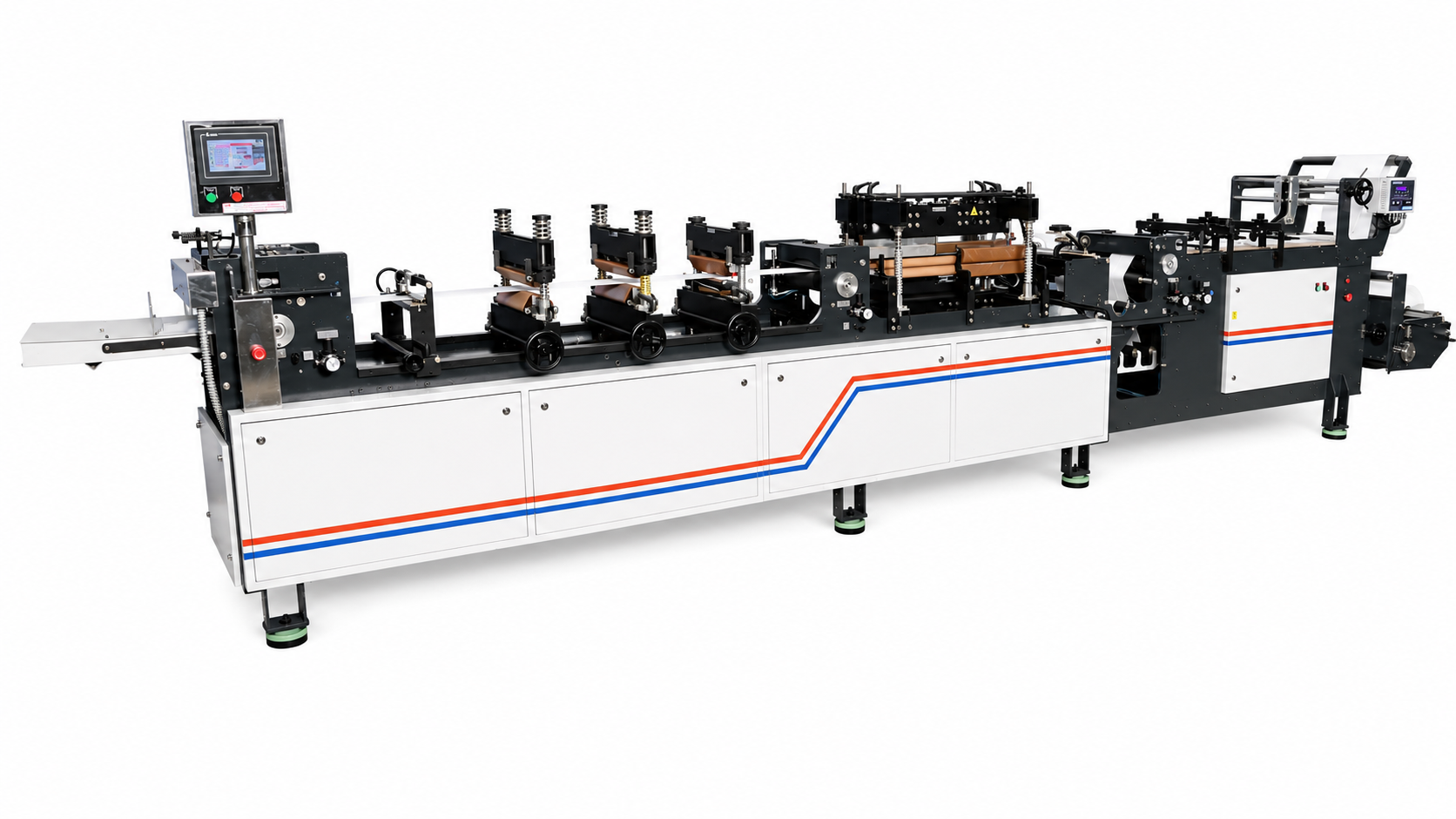

Center, Side, Three & Quad seal pouch making machine

A Center Seal Pouch Making Machine is a specialized industrial device designed to produce center-sealed pouches commonly used for packaging food items, pharmaceuticals, cosmetics, and other consumer goods. These pouches are characterized by a longitudinal seal at the back, providing excellent durability and barrier properties.

Specifications

DESCRIPTION	SPECIFICATION
Minimum Width	80mm / 4" inch
Maximum Width	240mm / 10" inch
Minimum Length	60mm / 3" inch
Maximum Length	500mm / 20" inch
Maximum Web Width	540mm (For Quad seal 500mm)
Film Thickenss	35mic to 90mic
Maximum Speed	200 pouches/min*
Total Power	11kW
Machine Dimensions	6700mm(L) x 980mm(W) x 1350mm(H)

* DEPENDING ON THE SIZE & FILM THICKNESS.

** ACCESSORIES SHOWN IN THE IMAGE IS NOT STANDARD ITEMS.

COMPATIBLE MATERIALS:

Plain or Printed

Multi Layer Laminated Film
BOPP Films
LD (multi layer)

Two Station Sealing
One Station Cooling (Provision for chilled water will be provided)
Inline sealing LH & RH
Inline Cooling LH & RH (Provision for chilled water will be provided)
Main draw rubber roller servo driven and controlled by PLC
AC drives and Servo drives are SYNCHRONIZED
Two stages SEALING & One stage COOLING
Cooling for center sealing
High speed Color mark sensor
Auto ERROR message with machine stop
LOW temperature protection

Auto StackerEdge Guide System
Perforation Sealer
Online Punch
1. " V " Notch
2. Hole Punch (As per customer request)

Single structure LASER CUT.
Time for installing the machine after unloading is 3hrs.
Wiring type PLUG & PLAY
