Center, Side, Three & Quad seal pouch making machine

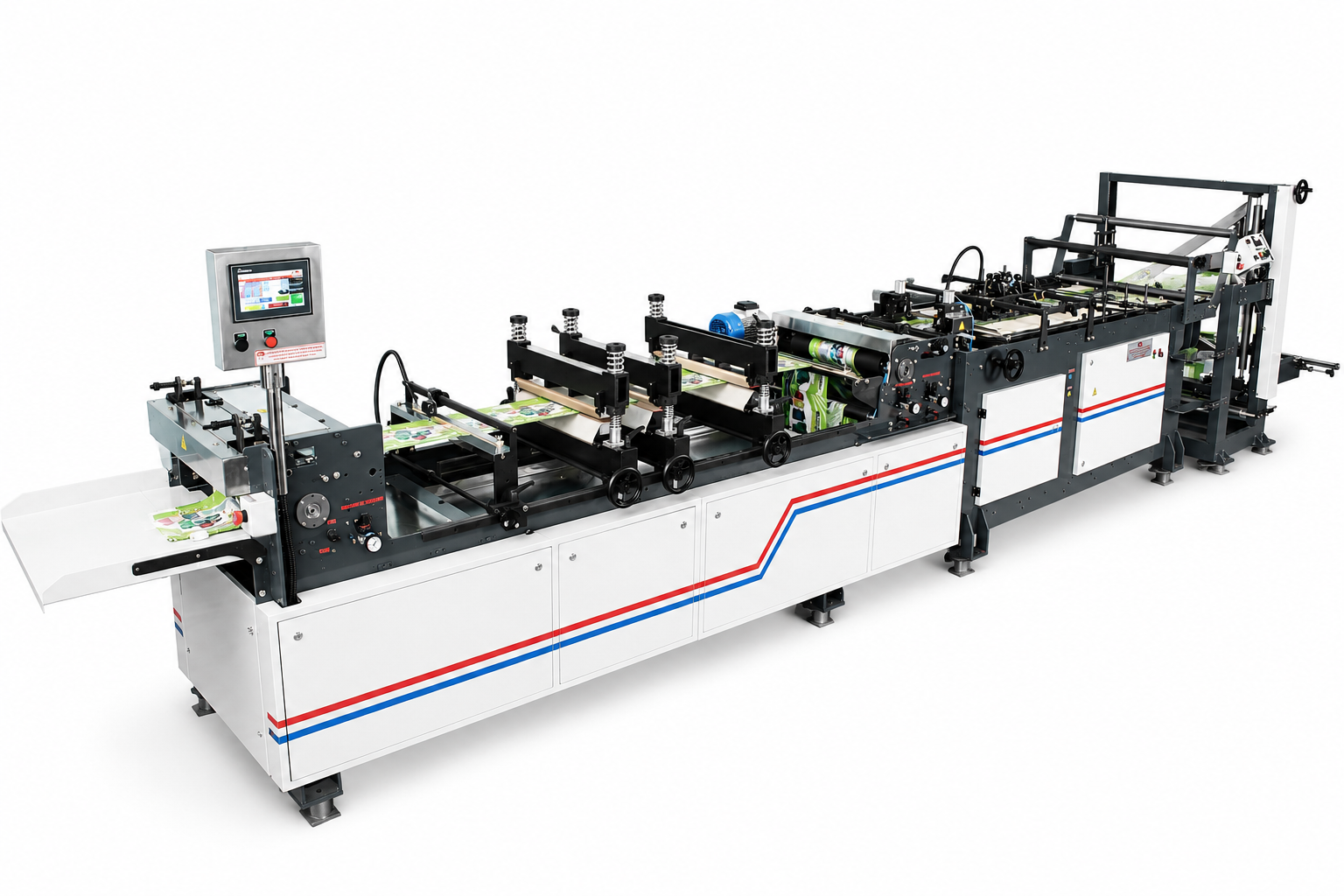

A Center Seal Pouch Making Machine is a specialized industrial device designed to produce center-sealed pouches commonly used for packaging food items, pharmaceuticals, cosmetics, and other consumer goods. These pouches are characterized by a longitudinal seal at the back, providing excellent durability and barrier properties. This machine consist of an equipment called UNIVERSAL FORMING UNIT which provides you easy change of sizes.
Specifications
| DESCRIPTION | SPECIFICATION |
|---|---|
| Minimum Width | 100mm / 4" inch |
| Maximum Width | 450mm / 18" inch |
| Minimum Length | 60mm / 2.5" inch |
| Maximum Length | 500mm / 20" inch |
| Max Web Width | 920mm ( For Quad Seal 500mm) |
| Film Thickness | 35mic to 90mic ( For Quad Seal 35mic to 60mic) |
| Maximum Speed | 200 pouches/min * |
| Total Power | 10kW |
| Machine Dimensions | 7300mm(L) x 1200mm(W) x 1650mm(H) |
* DEPENDING ON THE SIZE & FILM THICKNESS
# ACCESSORIES SHOWN IN THE IMAGE IS NOT STANDARD ITEMS
COMPATIBLE MATERIALS:
Plain or Printed
- Multi Layer Laminated Film
- BOPP Films
- Two Station Sealing
- One Station Cooling (provision for chilled water will be provided)
- Main draw roller servo driven, controlled by PLC
- AC drives & Servo drives are SYNCHRONIZED
- Two stage SEALING & One stage COOLING
- High speed color mark sensor
- Low temperature protection
- Online Punches
- Edge Guide System
- Single structure LASER CUT machine.
- Time for installing the machine after unloading is 3 to 4 hrs.
- Wiring type PLUG & PLAY.
