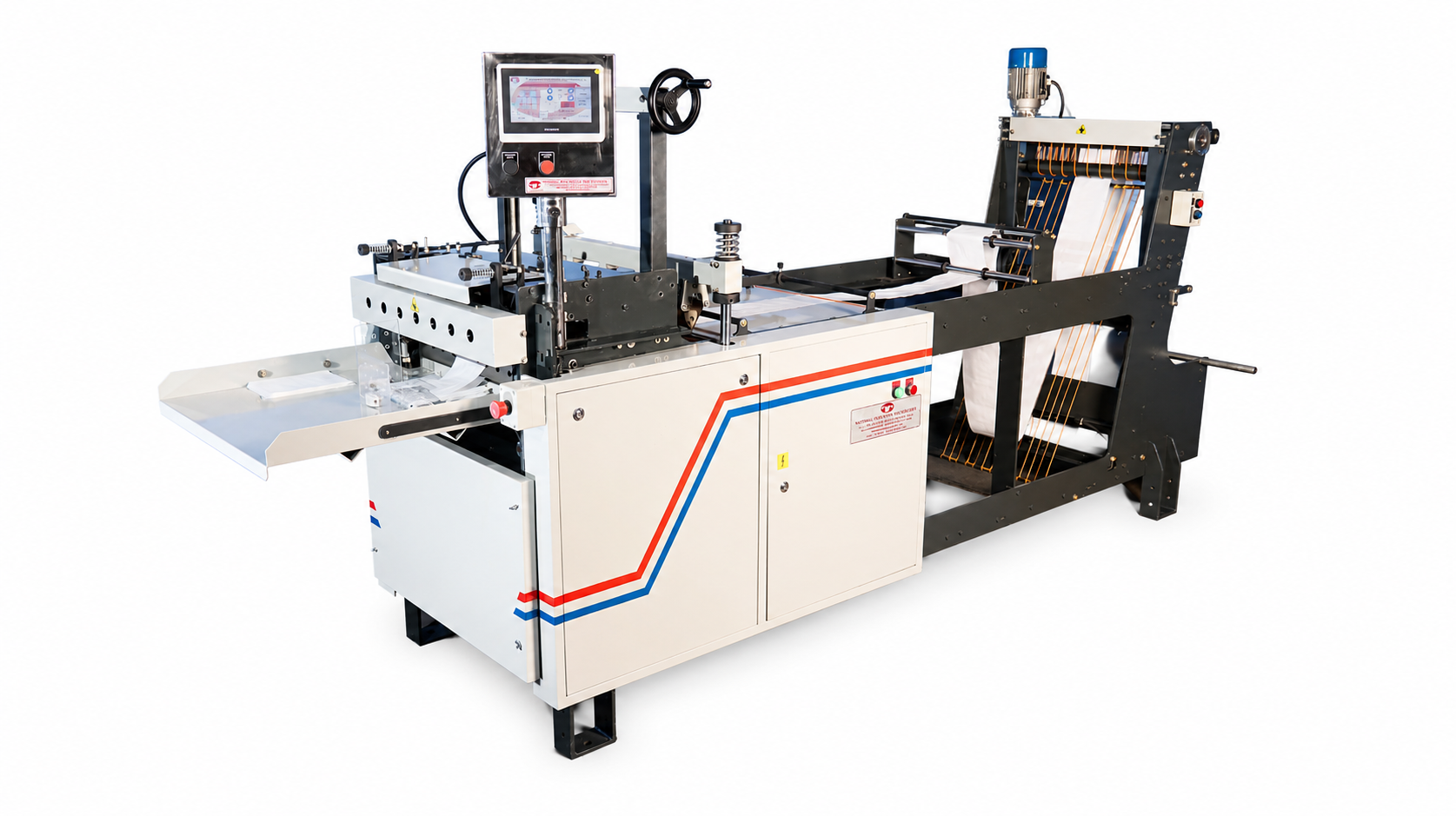

Bottom Seal Bag Making Machine
The Bottom Seal Bag Making Machine is an advanced and efficient solution for manufacturing high-quality plastic bags with bottom sealing configurations. Designed for precision and speed, this machine is ideal for industries producing packaging materials for a wide range of applications, such as retail, food packaging, garment bags, and industrial uses.
Specifications
| DESCRIPTION | SPECIFICATION |
|---|---|
| Minimum Width | 80mm |
| Maximum Width | 450mm |
| Minimum Length | 60mm |
| Maximum Length | 1200mm |
| Film Thickness | 50mic to 150mic |
| Maximum Speed | 200 bags/min * |
| Total Power | 5kW |
Compatible Materials : Plain or Printed, Bio De-Compostable (PLA) LD - LLDPE, HM-HDPE, PP tube form
( * )DEPENDING ON THE SIZE & FILM THICKNESS
- Main draw roller servo driven, controlled by PLC
- Film cut sensor for loading
- High speed color makr sensor
- Auto ERROR message with machine off
- Print mark protection
- Online Punch
- Carry Bag Sealer
- Cross Sealer
- Single structure LASER CUT machine.
- Time for installing the machine after unloading is 3 to 4 hrs.
- Wiring type PLUG & PLAY.
